Collector/distributorSAVE 180/SAVE 250

You can trust the quality of our premium products. The GEROtherm^® SAVE collector/distributors stand out thanks to their extremely low pressure losses, thus boosting the overall efficiency of the plant. The Kvs values are available for all SAVE products. They are quick and easy to install thanks to their flat-sealing connections, with no need for complex hemp sealing. Should you have any special needs or wishes, we are the right partner for you. We deliver individually customised products quickly.

Please refer to the corresponding Flyer, Technical datasheet or Tender specifications for a more detailed product description.

Product details

APPLICATIONS:

‎Max. flow:

SAVE 180 = 48.4 m3/h*
SAVE 250 = 118.4 m3/h*
Material: PE100-RC
(RC = resistance to crack)
Temperature range: –20°C/+40°C
Temperature range@ max. 3 bar: –20°C/+50°C‎

* V˙ max. m³/h @ 1m/s in SAVE

PROPERTIES:

Outlet Y selectable according to table
Optionally with or without filling/drainage valve de 40 or 50 mm
Flat-sealing connections with ball valve /- balancing valves

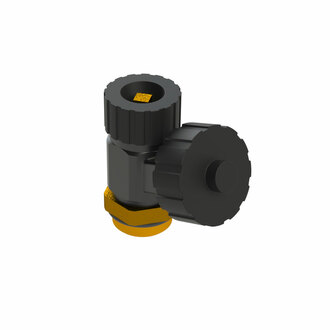

Bleeder R½"

CONNECTIONS DE 40 MM OR 50 MM

‎

With ball valve

‎

High-quality plastic ball valve TYPE GF 375 with removable ball seat
Flat-sealing connections with ball valve

With balancing valve

‎
With «hyline» connection:

‎de 40 or de50 = 20–60l/min‎‎

With inline connection:

de 40 = 20–70l/min and 5–42l/min selectable
de 50 = 20–70l/min and 5–42l/min selectable

For further product details, please refer to the corresponding Flyer, Technical datasheet or Tender specifications.

Advantages

They are easy to install, and work safely and reliably. Flat-sealing connections let you assemble them quickly.
The welded connections comply with the DVS Guideline 2207-1
the GEROtherm^® SAVE collector/distributor meets the requirements of SIA 384/6.
Certified and monitored by SKZ. SKZ certification no. A278‎
