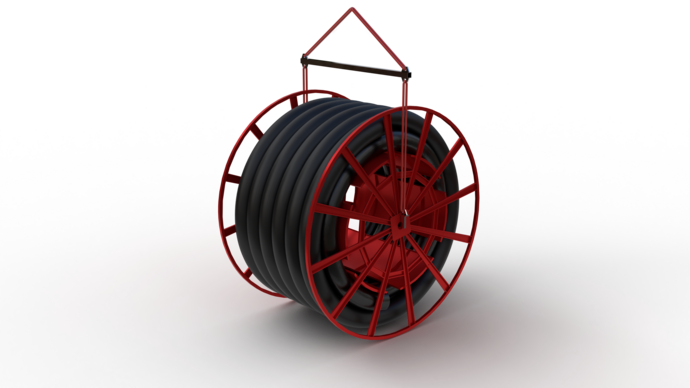

Traverse for coil drums
The specialist for professional slinging of drums on forklifts and industrial trucks.More information

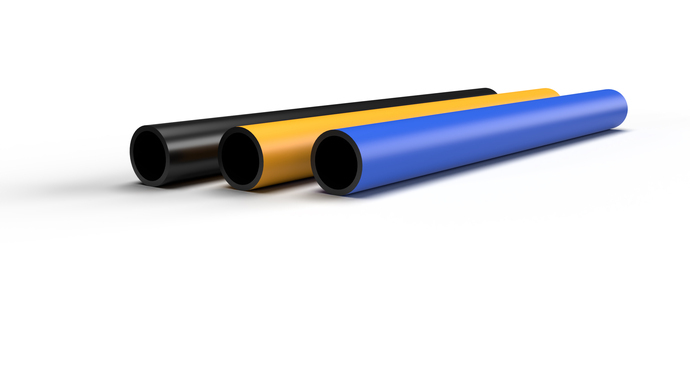

GEROthen®PE100 pressure pipe
GEROthen®PE100 pressure pipe
GEROthen® pressure pipes are single-layer extruded black pipes with medium-compliant colour strip marking in material class PE100.
GEROthen® COEX pressure pipes are double-layer solid wall pipes in material class PE100. The outer layer is coextruded in a colour corresponding to the media.
GEROthen® COEX pressure pipes are double-layer solid wall pipes in material class PE100. The outer layer is coextruded in a colour corresponding to the media.
TECHNICAL SPECIFICATIONS
-
SDR7,4 | 11 | 17 | more on request
-
Dimension32 - 630 mm
-
Usage
Potable water
Gas
Sewage
Industry -
Pipe structure
GEROthen® pressure pipe according to DIN and EN standards | Single-layer (GEROthen®) or double-layer (GEROthen® COEX) pressure pipe
-
Marking
GEROthen®: Pressure pipe in black with media-coloured longitudinal stripes distributed around the circumference | GEROthen® COEX: Double-layer media pressure pipe in black with media-coloured outer layer | Media pressure pipe with complete coloured metre marking in accordance with DVGW
-
Application/intended use

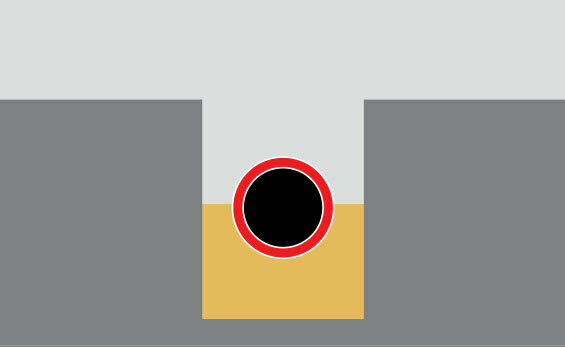

Medium pressure pipe for underground installation in accordance with standards and DVGW approval | Installation in open trenches with sand bedding
-
Special feature(s)
Gerodur drinking water pressure pipes with additional regular testing of organoleptics - Qplus label | available on large coils with, for example, OD 180 mm and 380 m length
-
Standards
DIN EN 12201 | DIN EN 1555 | DIN 8074/8075 | DVGW GW 335 – A2
-
Certification
DVGW | DIN CERTCO | international on request | ISCC Plus certification on request
-
Material
PE100 according to the positive list of the KRV e.V.
-
Delivery forms
straight length | coil | drum
-
Tender texts
GEROthen® sewage pressure pipe at Ausschreiben.de
GEROthen® potable water pressure pipe at Ausschreiben.de
GEROthen® gas pressure pipe at Ausschreiben.de
GEROthen® COEX potable water pressure pipe at Ausschreiben.de
GEROthen® COEX gas pressure pipe at Ausschreiben.de
Process water pressure pipe PE100 at Ausschreiben.de
This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus
Accessories
More information
Rerounding clamps
The tugger for maximum rounding force when welding with electrofusion fittings/sockets.More information
References
Similar products
GEROfit® R
Pressure pipe with protective jacket for trenchless installation methods, additional protective functions such as notch/scratch and crack resistance, easy and time-saving processing.
More information

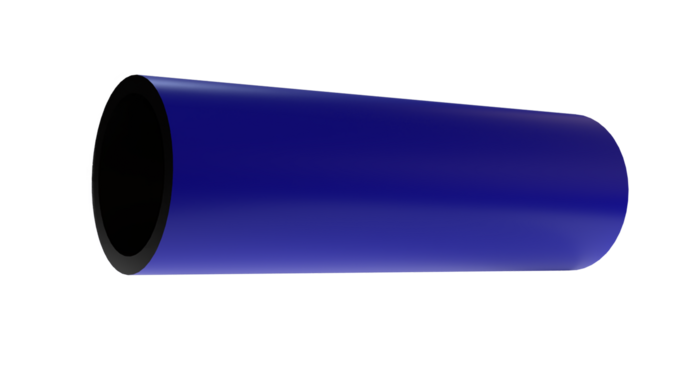

RCprotect®
