GEROtec MININGAbrasion resistant pressure pipe

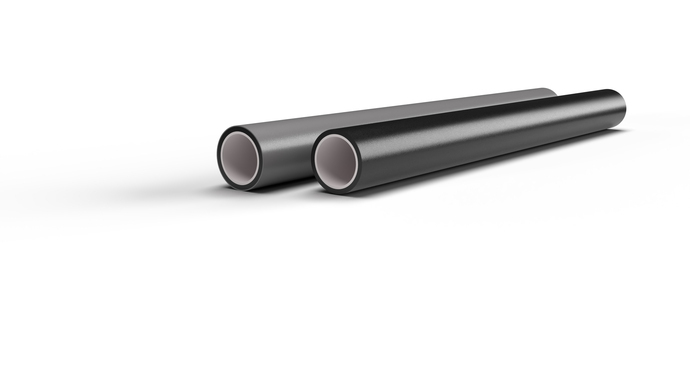

The inner protective layer guarantees long-term resistance to abrasive wear when transporting media containing solids. Available in 2-layer (GEROtec MINING I) or 3-layer (GEROtec MINING II) pipe wall construction. The economical alternative to traditional materials in industrial, plant and mining applications.

TECHNICAL SPECIFICATIONS

SDR

7,4 | 11 | 17 | more on request
Dimension

110 - 630 mm
Usage

Wet solid mixtures
Pipe structure
Pressure pipe according to DIN and EN standards | Double-layer media pressure pipe with coextruded, abrasion-resistant inner layer and smooth ends | Optionally as multi-layer media pressure pipe with coextruded light-coloured outer layer and additive abrasion-resistant inner layer and smooth ends
Marking
Media pressure pipe with core layer in black | Optional: outer layer in silver-grey | Dimensionally integrated inner layer; colour shade light, suitable for inspection | System pipe with complete metre marking according to standard specifications (optional supplementary according to project requirements)
Application/intended use
Industrial and mining pipe for wet conveying of media with solids content | Open laying | Laying in trenches with (PE100) and without sand bedding (PE100-RC)
Special feature(s)
Inner protective layer for long-term stress due to abrasive wear | light-coloured outer layer made of UV-stabilised PE100 or PE100-RC for low thermal stress on the system pipe
Material
Outer layer made of PE100 or PE100-RC according to positive list of KRV e.V. (PAS 1075) | Abrasion-resistant inner layer made of thermoplastic elastomer
Delivery forms
straight length of 12m | further length on request
Tender texts
GEROtec MINING I double-layer pipe at Ausschreiben.de
GEROtec MINING II multi-layer pipe at Ausschreiben.de
GEROtec MINING FDC weld-on collar at Ausschreiben.de

System components

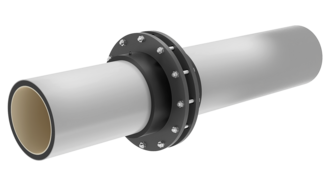

Weld-on flange
The GEROtec mining weld-on flange ensures a detachable connection to other materials and a continuous abrasion-resistant inner layer.

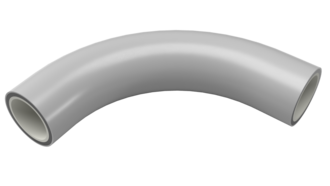

Seamless bend
Bends with large bending radii are available to reduce point abrasion forces.
Branch

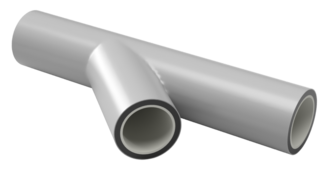

Segment-welded Y-pieces with abrasion-resistant inner layer for the installation of a branch on request with reduced outlet.
T-piece
Segment-welded T-piece with abrasion-resistant inner layer on request with reduced outlet.

Accessories

Peeler Set

The power pack for protective jacket pipes according to PAS 1075 type 3. For quick and easy removal of the protective jacket.
More information

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion sockets.
More information

References

> more
Abrasion-resistant pipes for Europe's largest gravel plant in Mühlberg on the river Elbe

Suitable Installation

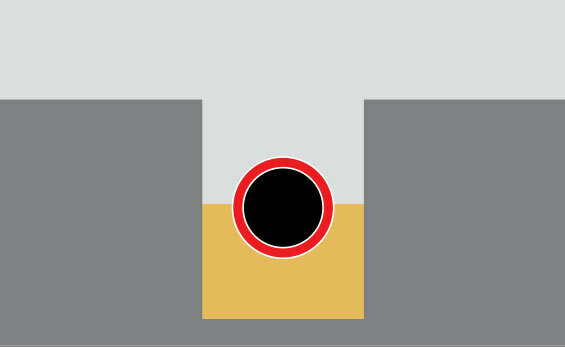

Sand bedding

When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.

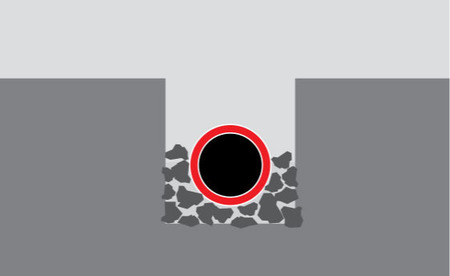

Without sand bedding

Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).

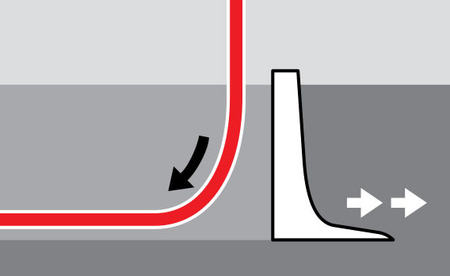

Ploughing

In the ploughing method, the soil is displaced by a plough blade and the pipeline is placed on the bottom of the soil.

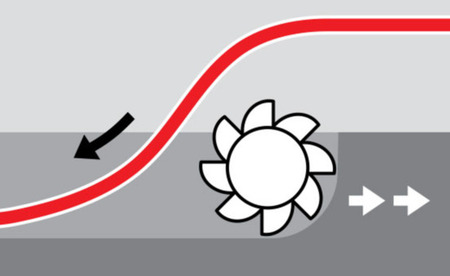

Milling
