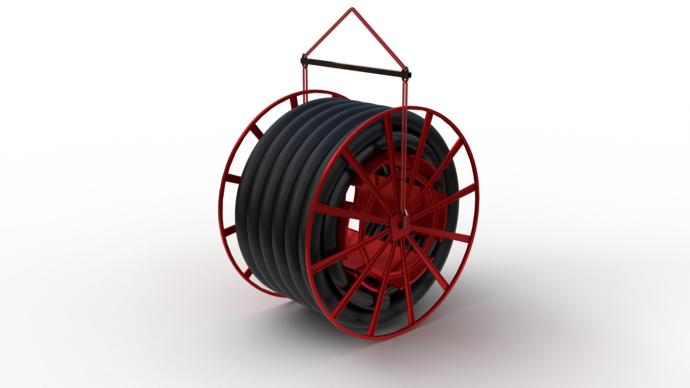

Traverse for coil drums
The specialist for professional slinging of drums on forklifts and industrial trucks.More information

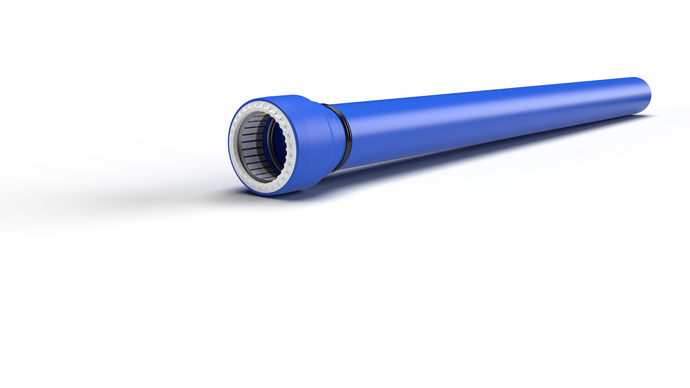

GEROgripFast connection for successful use
The GEROgrip push-fit system greatly simplifies the laying of piping systems for drinking water supply. GEROgrip comes with a factory-welded, longitudinal force-locking push-fit socket. It offers short laying and processing times with full pressure load capacity and enables laying independent of temperature and weather conditions.
TECHNICAL SPECIFICATIONS
-
SDR11 | 17
-
Dimension90 - 450 mm
-
UsageDrinking water
-
Pipe structure
Medium pressure pipe made of PE100-RC, type 2 according to PAS 1075 as well as DIN and EN standards | With factory-welded, pressure class-compliant push-fit socket, optionally with dimensionally added protective jacket
-
Marking
Pressure pipe in black with dimensionally integrated outer layer in royal blue | optional protective jacket in blue with green longitudinal stripes distributed around the circumference and complete metre marking in accordance with DVGW | push-in sleeve in blue
-
Application/intended use
Drinking water pressure pipe for tension-resistant socket installation in buried systems in accordance with the standards listed below and DVGW approval | Suitable for installation in open trenches with and without sand bedding | Non-detachable push-in connection
-
Special feature(s)
Permanent batch control of PE100 RC pipe materials | Gerodur drinking water pipes with additional, regular organoleptic testing (Q-Plus)
-
Material
Medium pressure pipe PE100-RC according to PAS 1075 | socket body PE100-RC with EPDM sealing | protective jacket made of modified polyolefin compound
-

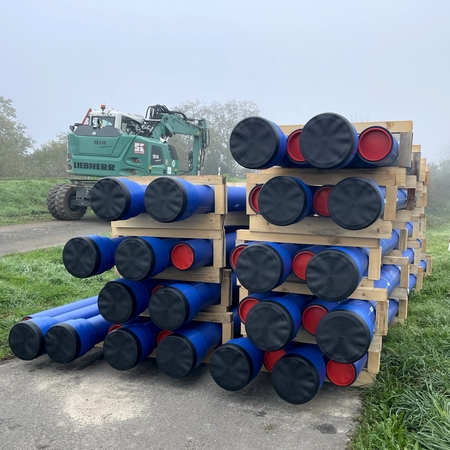

Delivery forms
Straight length systems of 3m, 6m and 12m (pipe length plus socket body)
-
Tender texts
GEROgrip Type 2 potable water pressure pipe at Ausschreiben.de
GEROgrip Type 3 potable water pressure pipe at Ausschreiben.de
This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus
Accessories
More information

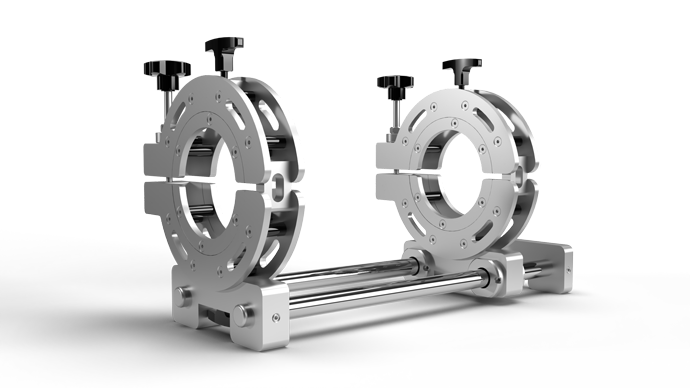

Rerounding clamps
The tackler for maximum rounding force when welding with electrofusion fittings/sockets.More information
References

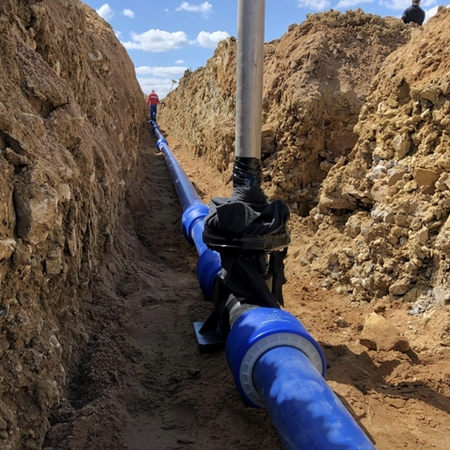

Suitable installation
![Gerodur laying in sand bed Computer graphics]()
With sand bedding
When laying in a sand bed, the excavated material must be replaced by a sand bedding in accordance with DIN EN 805.
Restrictions on the grain size of the bedding material must be observed.![Gerodur laying without sand bed Computer graphics]()
Without sand bedding
Due to the verification by an independent testing institute, the installation is possible without sand bedding. This eliminates the additional expense of replacing the excavated material with a sand bed in accordance with DIN EN 805 (transport, landfill).
Similar products
GEROfit® REX
Permeation-tight Barrier Pipe. For the protection of drinking water and the environment - predestined for contaminated or contamination-prone soils.
More information

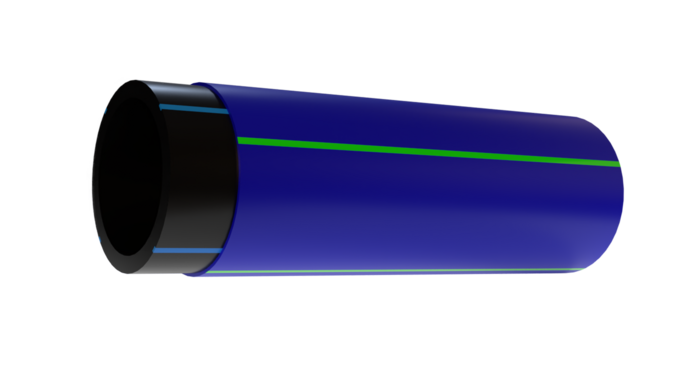

GEROfit® R
