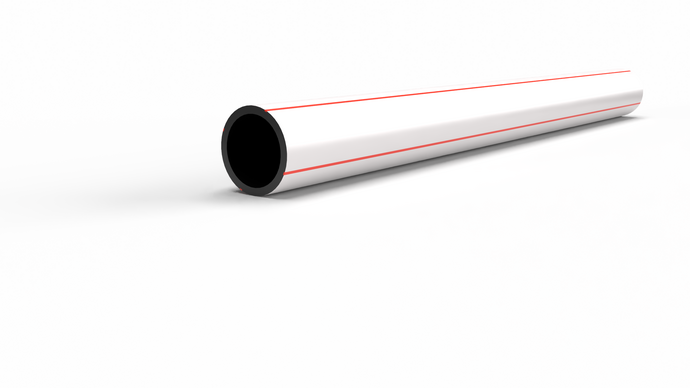

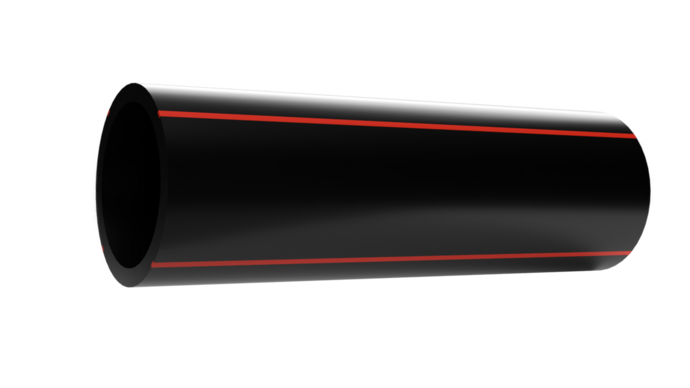

EMDS PE100-RC

Protective pipes made of resistant PE100-RC material with increased resistance to point loads and crack-initiating stress peaks. For underground installation of high and medium voltage lines with continuous service temperatures up to 40°C.

TECHNICAL SPECIFICATIONS

SDR

7,4 | 11 | 17 | more on request
Dimension

32 - 630 mm
Usage

High and medium voltage cables
Pipe structure
EMDS protection pipe according to DIN and EN standards | solid wall pipe made of crack resistant polyethylene (PE100-RC) with smooth ends
Marking
Solid wall pipe in black (optionally with red identification stripes or co-extruded, coloured outer layer) | Complete metre marking in accordance with standard specifications
Application/intended use
EMDS protective conduit for buried installation for blowing in, pulling in and inserting cables and fibre optics | Cable protection conduit for high- and medium-voltage cables with continuous service temperatures up to 40°C
Special feature(s)
Increased resistance to point loads and crack-initiating stress peaks
Material
PE100-RC according to PAS 1075
Delivery forms
straight length | coil | drum
Tender texts
EMDS conduit pipe High performance class PE100-RC at Ausschreiben.de
EMDS conduit pipe PE100-RC with protective jacket at Ausschreiben.de

This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus

Accessories

Traverse for coil drums

The specialist for professional slinging of drums on forklifts and industrial trucks.
More information

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion fittings/sockets.
More information

References

> more
RCprotect^® for "Elbdüker" Dresden-Kaditz on the A4 motorway
> more
EMDS protective pipes high-performance class at the lake Kleine Müritz
> more
Relocation of a Water pipe line - Village Siehdichum

Suitable installation

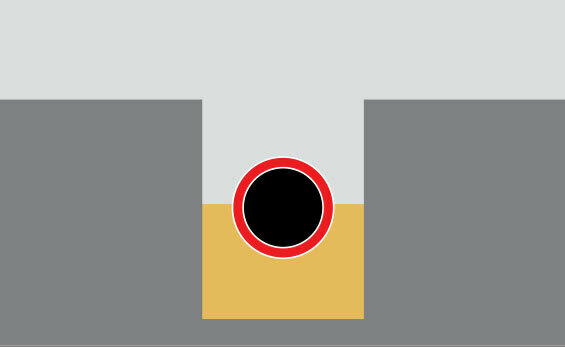

Sand bedding

When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.
Without sand bedding

Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).
Ploughing

In the ploughing method, the soil is displaced by a plough blade and the pipeline is placed on the bottom of the soil.

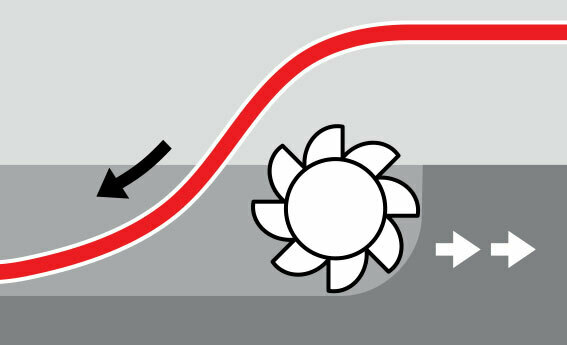

Milling

In the milling process, a pipe trench is cut into the subsoil by machine and the pipeline is laid on the bottom of the trench.

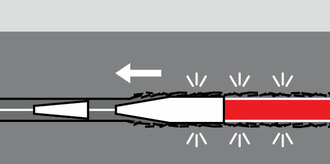

Pipe bursting

Static pipe bursting is the renewal of the old pipeline along the same of the old pipe route, which is shattered by the bursting head and the remaining fragments are pressed into the surrounding soil.

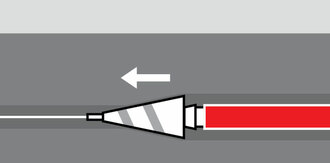

Horizontal Directional Drilling (HDD)

The new installation by HDD is usually carried out in three successive work steps. With the continuous pilot borehole, which is controlled by positioning the route is determined. This is followed by the widening of the borehole and the pulling in of the pipe string.
Relining

In the case of relining with annular space, the new pipe string with a smaller cross-section is pulled into the cleaned old pipeline using a pull-in device.
Soil Displacement Method

In the soil displacement method, a pneumatically operated displacement hammer, a so-called "rocket", is used to excavate an underground cavity. The new pipeline is then pulled into it.
