EMDS PE100

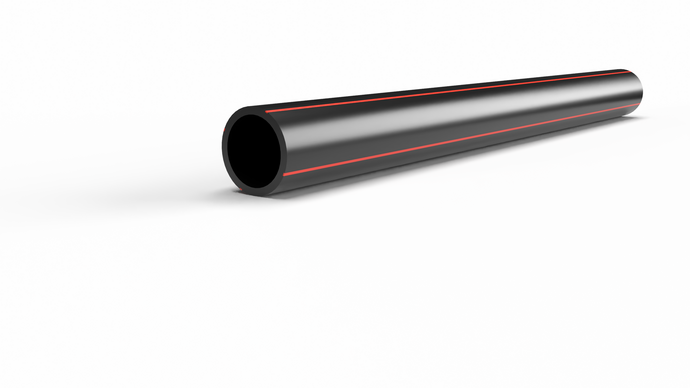

Protective pipes with secured static characteristic values and internal pressure resistance for buried installation suitable for blowing in, pulling in and inserting cables and fibre optics.

TECHNICAL SPECIFICATIONS

SDR

7,4 | 11 | 17 | more on request
Dimension

32 - 630 mm
Usage

Cable | fibre optics
Pipe structure
EMDS protection pipe according to DIN and EN standards | solid wall pipe made of PE100 | single or multi-layer with smooth ends
Marking
Solid wall pipe in black (optionally with coloured stripes) or double layer with coloured outer layer | with complete metre marking according to standard
Application/intended use
EMDS protective conduit for buried installation suitable for blowing in, pulling in and inserting cables and fibre optics
Special feature(s)
Optionally with longitudinally grooved inner surface
Material
PE100 according to the positive list of KRV e. V. and DIN 8074 / 8075
Delivery forms
straight length | coil | drum
Tender texts
EMDS conduit pipe Basic performance class PE100 at Ausschreiben.de

This product is also available with ISCC Plus sustainability certification on request. We have summarised all the information for you here -> ISCC Plus

Accessories

Traverse for coil drums

The specialist for professional slinging of drums on forklifts and industrial trucks.
More information

Rerounding clamps

The tackler for maximum rounding force when welding with electrofusion fittings/sockets.
More information

References

> more
Investment in the future - expansion of the infrastructure in Hoppegarten
> more
EMDS Protective pipe for a new IT infrastructure
> more
Protective pipe installation and pipe bundle insertion in Leipzig

Suitable installation

Sand bedding

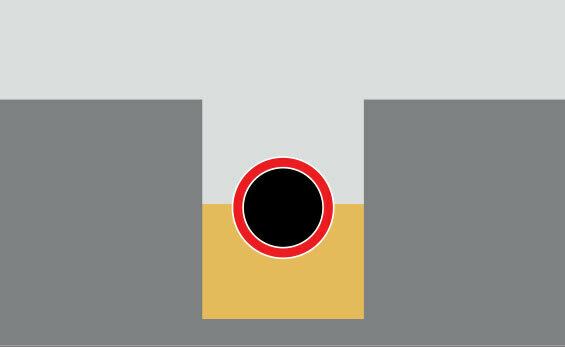

When laying in a sand bed, the excavated material must be replaced with a sand bedding in accordance with DIN EN 805. Restrictions on the grain sizes of the bedding material must be observed.
Without sand bedding

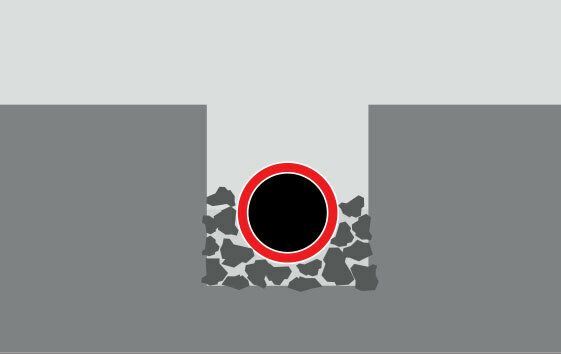

Due to the verification by an independent testing institute, the installation is possible without a sand bed. This eliminates the additional expense of replacing the excavation with a sand bedding in accordance with DIN EN 805 (transport, landfill).
Ploughing

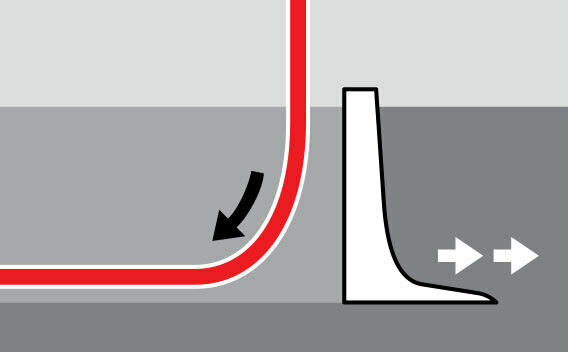

In the ploughing method, the soil is displaced by a plough blade and the pipeline is placed on the bottom of the soil.

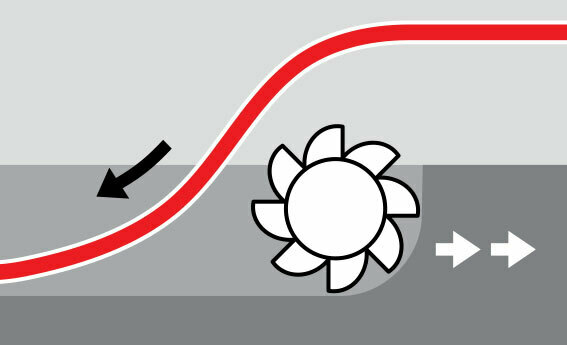

Milling

In the milling process, a pipe trench is cut into the subsoil by machine and the pipeline is laid on the bottom of the trench.
Pipe bursting

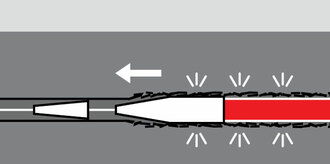

Static pipe bursting is the renewal of the old pipeline along the same of the old pipe route, which is shattered by the bursting head and the remaining fragments are pressed into the surrounding soil.
Horizontal Directional Drilling (HDD)

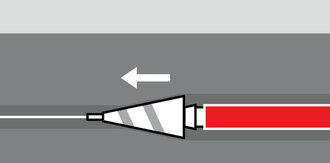

The new installation by HDD is usually carried out in three successive work steps. With the continuous pilot borehole, which is controlled by positioning the route is determined. This is followed by the widening of the borehole and the pulling in of the pipe string.
Relining

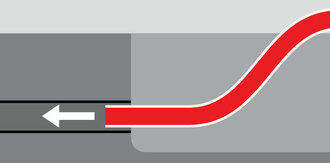

In the case of relining with annular space, the new pipe string with a smaller cross-section is pulled into the cleaned old pipeline using a pull-in device.
Soil Displacement Method

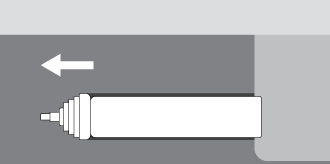

In the soil displacement method, a pneumatically operated displacement hammer, a so-called "rocket", is used to excavate an underground cavity. The new pipeline is then pulled into it.
